ComSpace

Service Overview

ComSpace is a housing and co-location service that allows customers to install their important systems in ARTERIA’s data centers.High performance, highly reliable equipment and an extensive range of access options enable us to propose optimal data centers for customers.

Features

  1. FEATURE1

    An extensive lineup and network services

  2. FEATURE2

    Large capacity external connections

  3. FEATURE3

    24-hour, year-round support and managed services for peace of mind

  4. FEATURE4

    Convenient access

  5. FEATURE5

    Reliable operation record

FEATURE1

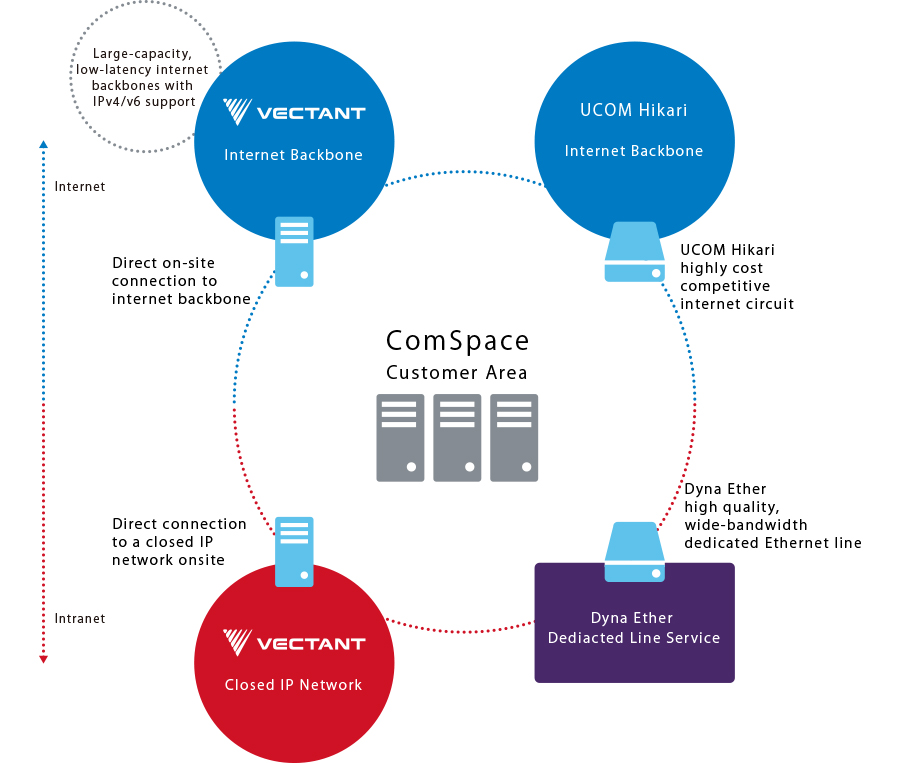

An extensive lineup and network services

Services are provided to meet customers’ requirements, from 1/4 racks to space units.Customers can select from AC100V, AC200V, and DC48C power supplies, and a host of other options for redundancy, power supply capacity and other aspects. Internet connections can be selected to suit customers’ usage applications, including highly cost competitive UCOM Hikari and high quality VECTANT iDC on-site access, with intranet options including the high quality, high bandwidth dedicated Ethernet line Dyna Ether, and the closed connection VECTANT Closed IP Network, which bypasses the internet.

An extensive lineup and network services

FEATURE2

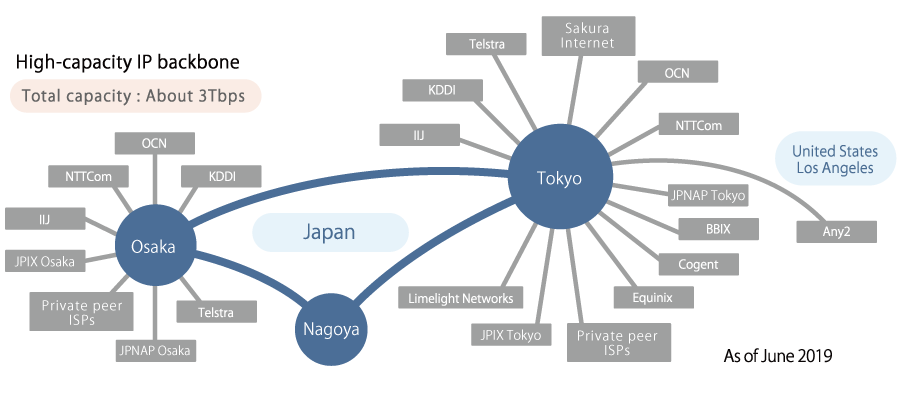

Large capacity external connections

We provide high-speed, high-quality internet services by private peering with major ISPs, peering at main internet exchanges in Japan, and connection with major overseas carriers.


Large capacity external connections

FEATURE3
24-hour, year-round support and managed services for peace of mind

Staff are stationed at data centers 24-hours a day, all year round to monitor the status of customers’ equipment through a remote hands service. Highly experienced staff provide optimal operation services for customers, reducing the burden of operation.?Important power supply management services at data centers are provided by Net-Moni. Net-Moni measures minute-by-minute power supply usage of each rack and provides notification by email when threshold values are exceeded.?

Some aspects of the services described here may differ at certain data centers.

FEATURE4
Convenient access

Data centers are required to provide convenient access. Most ComSpace facilities are located in urban centers with convenient locations not only for ordinary maintenance, but also for rapid response in emergencies.The facilities allow customers to employ better security at a distance that is comparable with in-house facilities.

FEATURE5
Reliable operation record

ARTERIA Networks started providing data center services in 2000 and has a strong operational track record. We provide optimal services for customers based on our many years of experience.

Main Usage Applications

Hybrid cloud

This service connects customers’ intranets to on-premise clouds and supported cloud services such as Amazon Web Services through completely closed connections that bypass the internet. Closed area connections provide a hybrid cloud environment with high security.



Hybrid cloud

Disaster response measures: Disaster recovery

As a business continuity planning (BCP) measure, we offer a backup data center in Osaka along with our main Tokyo data centers to minimize interruption of IT systems even in the event of a disaster.

As a business continuity planning (BCP) measure, we offer a backup data center in Osaka along with our main Tokyo data centers to minimize interruption of IT systems even in the event of a disaster.

Overview of Data Centers

Overview of Data Centers

Specifications

  ComSpace Ⅰ ComSpace Ⅱ ComSpace Ⅲ
Locations Chuo-ku, Tokyo Shinjuku-ku, Tokyo Tokyo
Floor area 3,641㎡ 9,336㎡ 8,870㎡
Main customers Network operators,ISPs,data center operators ASPs, CSPs, MSPs, hosting service operators General companies, cloud service operators, ISPs
Power failure response measures Power receiving method High voltage two-system reception (main line and standby line) Special high voltage spot network three-system reception Special high voltage two-system reception (main line and standby line)
Receiving voltage 6.6kV 22kV 66kV
On-site power generation for emergencies Gas turbine generator (continuous operation for up to 12 hours) Gas turbine generator (continuous operation for up to 24 hours) Air-cooled diesel generator (continuous operation for up to 48 hours)
UPS configuration Common standby redundancy method (N+1) configuration Common standby redundancy method, (N+1) configuration Common standby redundancy method, (N+1) configuration
Fire countermeasures Fire prevention equipment Gas fire extinguisher (nitrogen gas) Gas fire extinguisher (argonite gas) Gas fire extinguisher (nitrogen gas)
Fire detection Smoke detectors,Ultra-sensitive smoke detectors, Heat detectors Smoke detectors, Heat detectors Smoke detectors, Ultra-sensitive smoke detectors, Heat detectors
  ComSpace III (Annex) ComSpace
Toranomon
ComSpace West
Locations Tokyo Minato-ku, Tokyo Osaka-shi, Osaka
Floor area 7,287㎡ 6,000㎡ 8,477㎡
Main customers General companies,cloud service operators,ISPs Network operators, data center operators General companies, cloud service operators
Power failure response measures Power receiving method Special high voltage two-system reception (main line and standby line) Special high voltage spot network three-system reception Special high voltage two-system reception (main line and standby line)
Receiving voltage 66kV 22kV 22kV
On-site power generation for emergencies Air-cooled diesel generator (continuous operation for up to 48 hours) Gas turbine generator (continuous operation for up to 24 hours) Gas turbine generator (continuous operation for up to 24 hours)
UPS configuration Common standby redundancy method (N+1) configuration Common standby redundancy method (N+1) configuration Parallel redundancy method
Fire countermeasures Fire prevention equipment Gas fire extinguisher (nitrogen gas) CO2 fire extinguisher,Two-stage dry-pipe injection sprinkler Gas fire extinguisher (halon gas)
Fire detection Smoke detectors,Ultra-sensitive smoke detectors,Heat detectors Ultra-sensitive smoke detectors Smoke detectors, Ultra-sensitive smoke detectors,Heat detectors
